Model Context Protocol (MCP) in n8n: Integration and Applications

•Bilal Tahseen

Introduction

The Model Context Protocol (MCP) is an open standard introduced by Anthropic in 2024 that “standardizes how applications provide context to LLMs”. In plain terms, MCP acts like a “USB‑C port for AI” – a universal connector that lets AI models (LLMs) discover and use external tools or data sources without custom integration code. MCP defines a client–server architecture where AI hosts (like chat interfaces or coding assistants) communicate via JSON‑RPC with MCP servers that expose specific “tools” (APIs, workflows, databases, etc.). For n8n – a popular workflow automation platform – MCP support means n8n workflows can become callable tools for AI agents, and n8n can consume tools exposed by other MCP servers. In version 1.88, n8n added native MCP support via two new nodes (an MCP Server Trigger and an MCP Client Tool). This lets developers plug n8n directly into AI-driven workflows without relying on community plugins.

Technical Overview of MCP

MCP is built on JSON-RPC 2.0 over long-lived connections. The protocol defines three roles: Hosts (LLM applications initiating actions), Clients (connectors within the host), and Servers (services providing tools and data). In practice, an AI application (Host) opens a streaming connection (usually Server-Sent Events, SSE) to one or more MCP Server endpoints. Through this connection, the Host can list available tools and invoke them with parameters. Each tool is pre-defined on the server side (for example, “send_email” or “query_database”) with fixed inputs and outputs. This standardized API means any compliant client can use any MCP Server’s tools without custom coding.

Figure: Simplified MCP architecture. An AI application (LLM) connects to MCP servers (either local or remote), which in turn access local data sources or external APIs on behalf of the model. (Diagram source: Monte Carlo Data). In this model, the MCP server acts as a gateway between the AI and underlying resources. Communication happens via JSON-RPC messages. For example, the AI might send a JSON-RPC request {"id":1,"method":"tools.list","params":{…}} to discover tools, then call {"id":2,"method":"tools.call","params":{"tool":"example","input":{…}}}. n8n implements this by providing an MCP Server Trigger node that exposes a workflow as an MCP server, and an MCP Client Tool node that can call an external MCP server. Both nodes support the SSE transport (HTTP streaming) – for instance, clients like Claude or GPT-based agents can connect via SSE, though other transports (e.g. stdio/CLI) are not yet supported in n8n. Once connected, the client can retrieve the tool definitions (resources, prompts, functions) from the server and execute them as if they were native capabilities of the AI system.

Practical Implementation

1. Exposing an n8n workflow as an MCP server:

  • •Create a new workflow in n8n. Launch n8n (self-hosted or cloud) and start a fresh workflow.
  • •Add the MCP Server Trigger node. In the node panel, search for “MCP Server Trigger” and add it. This node makes your workflow act as an MCP server.
  • •Configure the node. Specify (or accept) the generated URL path (e.g. /mcp/abc123) and set up authentication if needed (e.g. a Bearer token). Choose “None” for testing or add credentials for production.
  • •Attach tools to the trigger. Connect the MCP trigger node to other nodes that perform actions (these become the tools). For example, you might attach an Email node, a Google Calendar node, or an HTTP Request node to fetch data from an API. When you do this, n8n turns that attached workflow into a callable tool. You can also use the Custom n8n Workflow Tool node to wrap another workflow as a tool.
  • •Activate and note the MCP URL. Save and activate the workflow. n8n will display a Test and Production MCP URL (e.g. http://localhost:5678/mcp/abc123) at the top of the node. The production URL is the live endpoint clients should use.
  • •Test the setup. From an external agent or CLI, send a JSON-RPC POST to your MCP URL. For example, you can use curl: Replace "exampleTool" with one of your exposed tool names, and "input" with the data it requires. If everything is configured correctly, n8n will execute the workflow and return the results.
curl -X POST "http://localhost:5678/mcp/abc123" \
     -H 'Content-Type: application/json' \
     -d '{"tool": "exampleTool", "input": {"param1": "value1"}}'

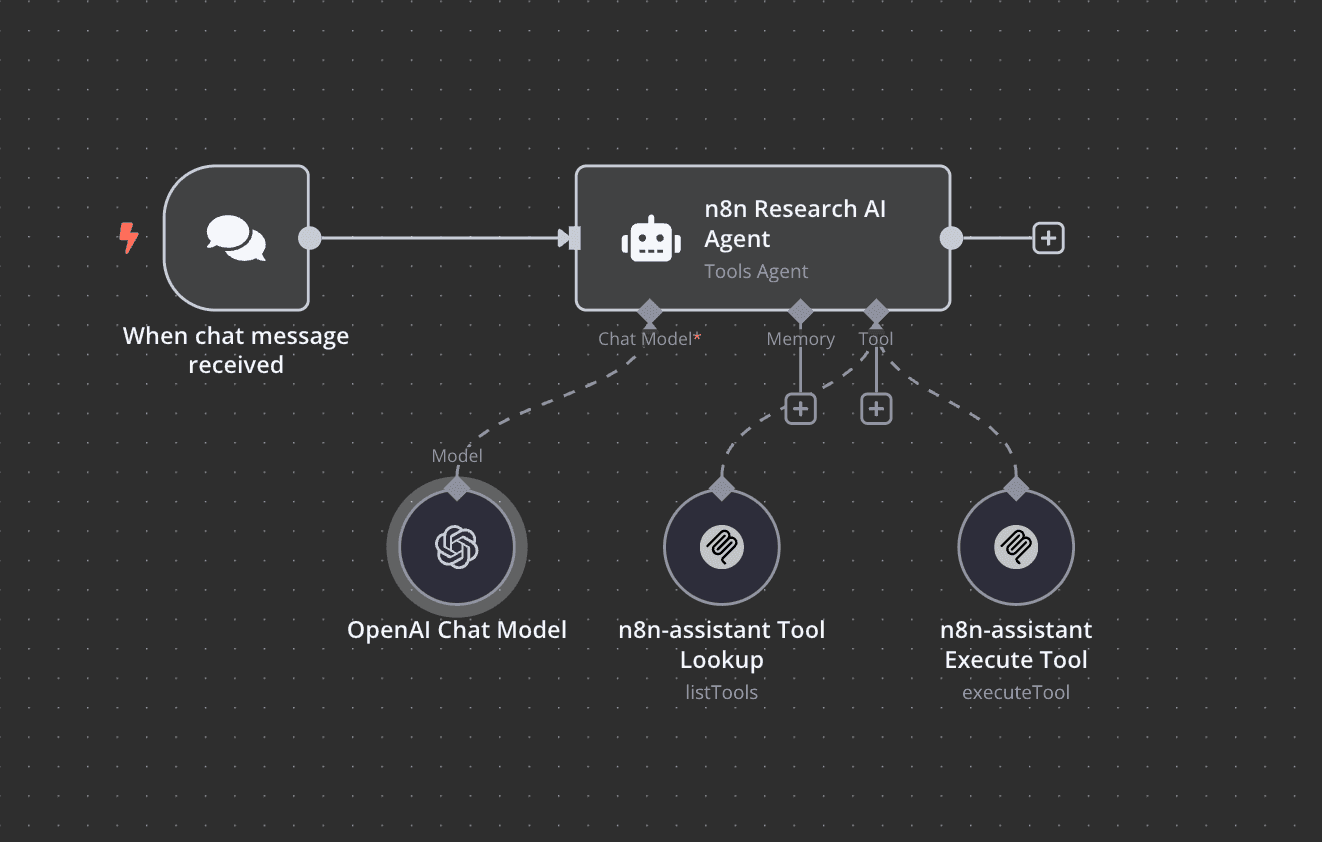

2. Using n8n as an MCP client:

  • •Start with an n8n workflow. Inside your workflow editor, add the MCP Client Tool node from the AI/agent category. This node allows n8n to act as a client connecting to a remote MCP server.
  • •Configure the client. In the node parameters:
    • •Set the SSE Endpoint to the MCP server’s URL (for example, http://ai-server.com:3000/mcp).
    • •Choose the Authentication method required by that server (Bearer token or custom header).
    • •Select which Tools to Include (either all tools from the server, or choose specific ones). This filters which external actions the AI agent will have access to.
  • •Connect to your model or workflow. The MCP Client Tool node can feed into an LLM node (if using n8n’s AI/LLM integration) or any downstream nodes. When the workflow runs, n8n will use the MCP client to list and call the selected tools on the remote server. The AI can then pass prompts or data into these tools and process the responses as part of the automation.

Use Cases and Applications

MCP in n8n unlocks many AI-driven automation scenarios. Here are some examples:

  • •Intelligent Task Automation: An AI assistant (like Claude or ChatGPT) can directly call n8n workflows to carry out complex tasks. For instance, a user could ask an LLM, “Schedule a meeting with Alice next Tuesday and send her an agenda email,” and the model could invoke two n8n tools – one to create a Google Calendar event and another to send an email – without manual API coding.
  • •Context-Aware Chatbots: Customer support bots powered by LLMs can fetch up-to-date information through n8n. For example, a chatbot might ask an MCP-connected n8n workflow to query a company database or call a REST API to retrieve a user’s order status, and then incorporate that data into its response.
  • •Data Enrichment Workflows: In a research or analytics context, an AI model could use n8n as a “data pipeline”. For example, the LLM might invoke an n8n tool that gathers data from multiple sources (databases, spreadsheets, web APIs) and returns a consolidated result, allowing the model to answer questions with fresh, curated data.
  • •Multi-Agent Orchestration: An n8n instance can serve multiple AI agents. For example, one agent may be connected to n8n as a server, using its tools, while another agent (or another n8n workflow) calls out to that agent via MCP. This enables sophisticated setups like a “brain” agent delegating tasks to specialized agent workflows.
  • •Workflow-as-Tool Projects: Some community projects illustrate creative uses of MCP. The “n8n Workflow Builder” is an MCP server where an LLM (such as Claude or Cursor IDE) can create, update, or activate entire n8n workflows via natural language prompts. This shows MCP’s potential not just for running tasks but even managing and generating automation logic through AI.

These examples demonstrate how MCP turns n8n into a bridge between AI and practical tools. As one n8n user put it, “Instead of tools needing to be known at build time, the set of available tools can evolve with the context provider,” greatly extending what AI-powered workflows can achieve.

Best Practices and Challenges

  • •Tool Organization and Documentation: Break your workflows into clear, focused tools. For maintainability, create separate workflows for different domains (e.g. “calendar tools” vs. “email tools”) and give each tool a descriptive name and documentation. This helps the AI agent choose the right tool. It’s recommended to “use clear naming conventions and document tool descriptions for the AI’s decision-making”.
  • •Authentication and Security: Always enable authentication on your MCP endpoints. Use strong Bearer tokens or API keys, and never leave your MCP trigger open to the public. Proper auth ensures only authorized agents can call your workflows.
  • •Test vs. Production Endpoints: n8n provides separate Test and Production MCP URLs for each workflow. Use the Test endpoint for development and debugging (it echoes data into the workflow UI), and activate the workflow for a locked-down Production URL. This way, you can safely iterate without affecting your live agents.
  • •Protocol Limitations: Be aware of current MCP constraints. n8n’s native MCP nodes support only SSE-based streaming connections. This means some non-SSE clients or workflows expecting command-line transports won’t work natively. Also, each MCP tool in n8n has a fixed resource and operation (for example, a “send email” tool is already bound to the “email” resource and “send” action). The AI cannot dynamically choose alternate operations for that tool, which can reduce flexibility. If your use case requires more dynamic behavior, you may need to create separate tools or use conditional logic within n8n.
  • •Efficiency and Redundancy: Sometimes the AI model may generate content before handing it off to n8n, leading to redundancy. For example, if you have a workflow to draft social posts, the AI might produce a full post itself and then send it to n8n (even though the workflow could have done that generation). To avoid inefficiency, design your prompts so the AI calls n8n for the work it needs done. You may need to iterate on prompts or use small “help” tools in n8n to guide the AI’s output.
  • •Error Handling and Monitoring: Implement robust error handling. MCP supports features like progress updates and cancellation, and n8n records workflow executions. Use n8n’s logging and the MCP error notifications to catch failures. For example, if an agent calls a tool that fails, ensure that n8n returns a clear error message. You can also design retries or fallbacks in your workflows. The MCP specification mentions utilities for progress tracking and error reporting; leveraging these can make AI-agent interactions more reliable.
  • •Performance Considerations: Because MCP involves real-time communication, ensure your n8n server has enough resources. Network latency can affect response times to the AI. For best performance, host your MCP server close to the AI host (geographically or in the same network) if possible.

By following these practices—clear design, secure endpoints, and careful prompt-workflow alignment—you can maximize the benefits of MCP. Keep an eye on n8n’s updates: future versions may add more transports or dynamic tool options.

Conclusion

The Model Context Protocol brings a powerful new dimension to workflow automation in n8n. By adopting MCP, n8n becomes a first-class citizen in the AI ecosystem: developers can easily plug in new LLM models or data sources, and AI systems can in turn tap into n8n’s vast library of integrations and custom logic. This standardization streamlines integration (no more per-LLM hacks) and future-proofs workflows, since the same MCP server can serve any compliant AI client.

In practice, MCP lets you build much smarter, more flexible automations. Your n8n flows can now act as intelligent tools for AI agents – making the boundary between software and AI-driven interaction seamless. For developers and architects, the payoff is a modular, scalable architecture: you can upgrade or swap out models without rewriting your backend tools, and secure the data handshake using uniform protocols.

The introduction of native MCP nodes in n8n means this capability is built-in, not an afterthought. As LLM technology continues to advance, MCP will likely play an increasing role in how applications and AI collaborate. By learning and applying MCP in n8n today, you position your projects at the forefront of AI-powered automation, ready to exploit whatever innovations come next.

Key Takeaways: MCP is an open standard that unifies AI and tools. In n8n, the MCP Server Trigger exposes workflows as tools, and the MCP Client Tool lets workflows call external AI tools. This unlocks new use cases (AI-managed workflows, smart assistants, etc.) while requiring attention to design (tool interfaces, security, transport). With thoughtful implementation, MCP makes n8n an even more versatile glue in the AI automation stack.
